Wednesday, August 12, 2015

11 - Gros Morne and the Tablelands

Gros Morne National Park is definitely worth the trip to Newfoundland—lots of hiking trails, lakes and nature to admire.

This section discusses inland fjords (on the map referred to as ‘etangs’), particularly Western Brook Pond, the coastal lowlands and the Tablelands. The map is published by Parks Canada and is available in the visitor centers.

The Inland Fjords
One of its great physical features is the Western Brook Pond which really is a lake. It also is an inland fjord, a geographic feature first carved out by a river and then by an alpine glacier. The graph below shows how a stream-cut valley differs from a valley cut by an alpine glacier—it is usually much deeper and broader on the sides with steeper walls.

A. Sketch of stream-cut valley;
B. Sketch of calley after modification by glaciation
Source: Rocky Mountain. The Geologic Story of the Rocky Mountain National Park Colorado. Available at http://www.nps.gov/parkhistory/online_books/romo/lee/lee/sec1.htm
A fjord comes into existence if the alpine glacier ends in an ocean and then calves off at its end (see the sketch of the fjord). As the glacier retreats or melts it leaves a depression behind that will fill up with sea and river water. As shown on the sketch the glacier produces at its mouth where it calves a heap of unsorted rock material, its end moraine, which is characteristic of fjords. This sill is usually submerged as well.
Source: Geologic Genesis of a Fjord. Wikipedia accessed at https://en.wikipedia.org/wiki/Fjord#/media/File:Fjord_genesis.png


Western Brook Pond came into existence after all the glacial ice melted. With the disappearance of the ice enormous weight was taken off the land, the land itself rose higher above sea level, it rebounded. It rebounded so much that the sill would eventually emerge above water creating a barrier to the sea. Western Brook Pond thus became a long, narrow lake which is commonly referred to as an inland fjord. Its only outlet to the sea is Western Brook.

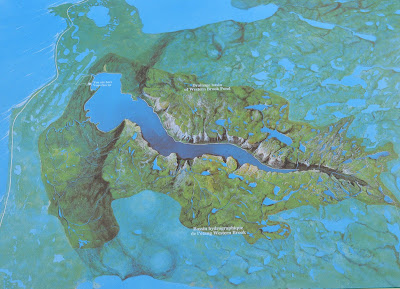

The Drainage Basin of Western Brook Pond
Source: Parks Canada, Western Brook Pond.


Western Brook.

Because the pond has only one outlet it takes the water about 15 years to be completely exchanged, a fact that makes the pond quite susceptible to pollution. In recent years, since the 1970’s, the use of the lake has increased via tour boating.
View onto Western Brook Pond from a western vantage point
Western Brook Pond contains some of the purest water in the world which is due to its limited drainage basin of the surrounding mountains, the sparse vegetation on those mountains and its general remote location. In addition, some of the brooks drain over limestone which cancels out the acidic drainage from upland swamplands thus giving the water a neutral pH value. The lake itself is classified as ultra oligotrophic, that is, it contains very few nutrients, a consequence of the fact that few plants can find root on its steep sides and bottom. Even though the lake is very clear and light can penetrate to about 10 m of depth, its depth and relative coldness (in summer it never gets any warmer than 5 °C (about 41 °F) hinder plant growth which results in low diversity of lifeforms within the lake.

The Geology of the Region
This photo shows the physical landscape into which the pond is carved. It consists of the Long Range Mountains in the background which are the result of a fault and the flat coastal lowlands before it (compare photo).  The rock itself is Proterozoic granite which metamorphosed into gneiss during the Grenville orogeny about 1,000 million years ago. This is a really old part of the planet.

Source: Parks Canada, Western Brook Pond

In some cases, the peaks of the highest mountains protruded above the ice sheets and were not subject to the erosion of the glaciers. These glacial features are known as nunataks.










The Flat Coastal Lowland


Since the area displays great geologic diversity showcasing rocks from many different time scales and of various origins it should not come as a surprise that the existing flora is also rather diverse. All in all, according the UNESCO web site here, the area distinguishes between 36 different vegetation types and communities.  Below are some photos of plants that seemed to be indicator plants in the coastal lowlands, often in the more swampy areas.

A "meat-eating" beauty



The Tablelands

The Tablelands. Photo taken at Norris Point.
Even an inexperienced eye surveying the physical landscape portrayed above will notice the difference between the mountains in the background and the surrounding mountains. The lack of vegetation is rather noticeable, even from the distance.


This region is one of the reasons why the Gros Morne National Park area became a UNESCO Heritage Site since it illustrates some of the processes connected to the movements of earth’s plates, to the theory of plate tectonics.
